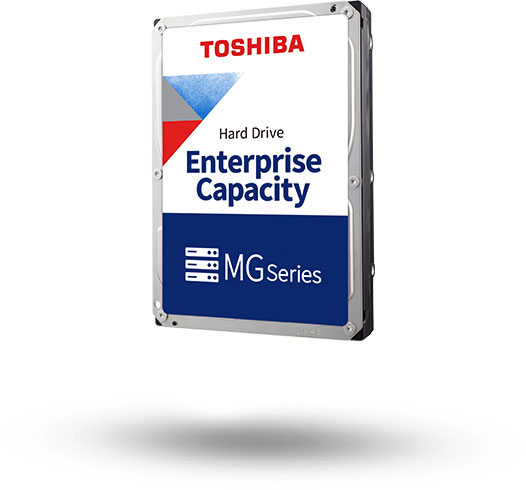

As Big Data drives demand for more distributed storage in the cloud and on premises, enterprise server and storage systems need to be built using trusted solutions. Toshiba's Enterprise Capacity Hard Drive – MG Series offers formatted capacities as high as 18TB with interface options including SATA and SAS and delivers 24/7 operation at a workload of 550 TB/year. The MG Series is ideal for enterprise storage array and industrial server and storage systems. It provides the capacity and advanced technologies to meet the special demands of datacenter and cloud-scale infrastructures. With formatted storage capacities ranging from 1 TB to 18TB the MG Series offers hard disk drive solutions for enterprise servers and storage systems with need for capacity.
3.5" SATA or SAS Hard Drive24/7 operation5-year warrantyToshiba Stable Platter TechnologyPersistent Write Cache technology550 TB/year workloadFlexibility in block size and SIE and SED optionsRotational Vibrations sensorBusiness critical enterprise server & storage systems with need for capacityMainstream enterprise storage arrays (RAID, software defined)Cloud- & hyperscale storage systemsDistributed file systems, Big DataEnterprise & cloud archive- & data recovery systemsCentralised surveillance data storage systemsIndustrial server- & storage systems
| Basic Specifications | |
|---|---|
| Form factor | 3.5-inch |
| Interface | 12 Gbit/s SAS / 6 Gbit/s SATA |
| Available capacities | 20TB/18TB/16TB/14TB/12TB/10TB/8TB/6TB/5TB/4TB/3TB/2TB/1TB |
| RoHS compatible | Yes |
| Halogen Free | Yes |
| Performance | |
| Rotational speed | 7.200 rpm |
| Buffer size | 512 MB / 256 MB / 128 MB |
| Native Command Queing (NCQ) | Supported |
| Reliability | |
| Workloads | 550 TB/year |
| Unrecoverable error rate | 1 per 1015 bits read |
| 24/7 operation | Supported |
| Limited Warranty | 5 years |

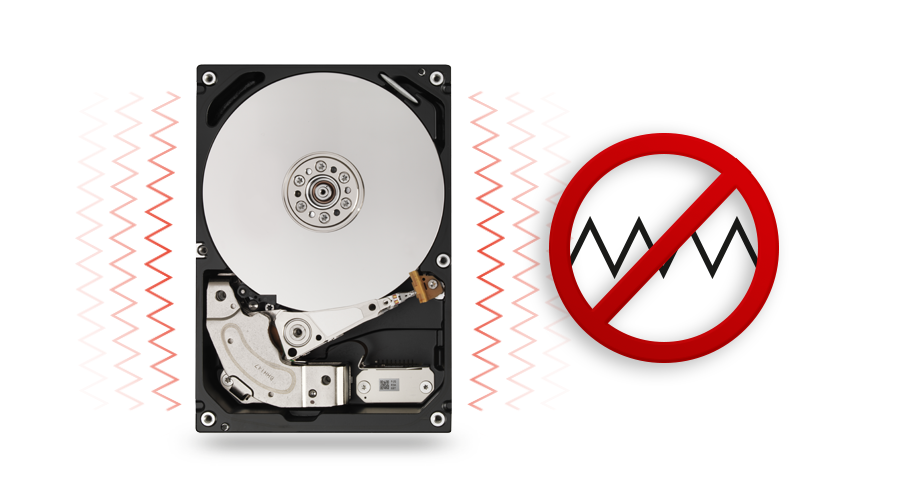

Regular hard disk drives can impact the performance of a multi-bay system by generating 'knock-on' vibration. The MG Series ensures high reliability by minimising vibration effects through their advanced control and sensing technology. Multiple sensors detect the slightest shock and built-in RV (Rotational Vibration) sensors compensate for any rotational vibration detected, eliminating the possibility of 'knock-on' vibration in multi-bay server systems.

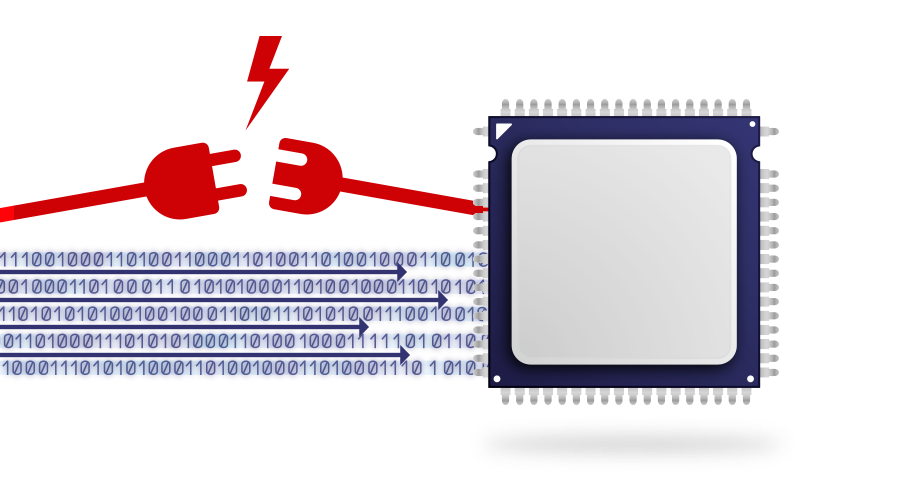

Your data is critical so don't risk it. Toshiba's advanced technologies have been developed to add security and assurance to the enterprise user. With Persistent Write Cache Technology your data is safe in the event of an interruption in power supply during a write to the hard disk. Data is saved in the large flash-based cache and written to the disk when power is restored.

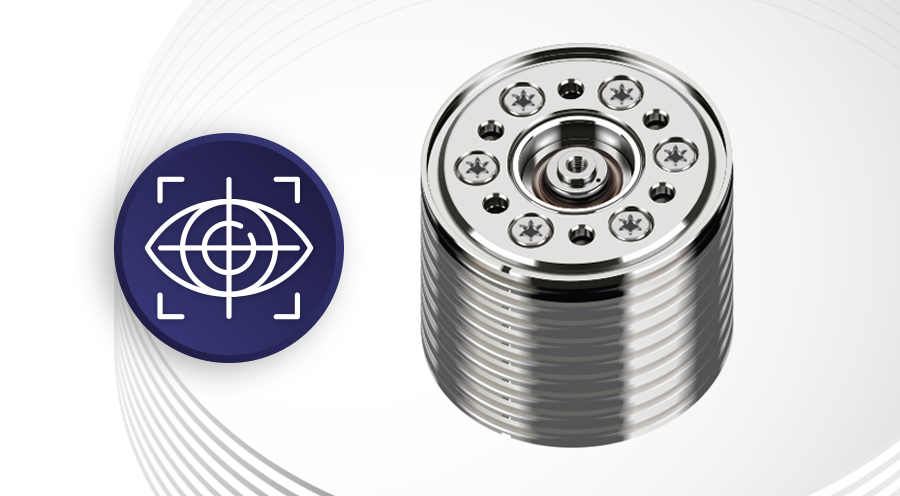

Toshiba’s innovative Stable Platter Technology minimizes vibrations by stabilizing the motor shaft at both ends. And that means improved tracking accuracy and maximum performance during read and write operations. In addition, Toshiba’s Dynamic Cache Technology, a self-contained cache algorithm with on-board buffer management, optimizes how the cache is allocated during read/write to provide the high-level performance demanded by real-time domains.
The MG08 and MG07 Conventional Magnetic Recording (CMR) HDDs use a helium-sealed design, providing the power-efficient capacity and storage density needed by cloud-scale and enterprise storage solution providers to achieve their TCO objectives. The MG08 and MG07 Series also utilise Toshiba Group’s laser welding technology to ensure the helium remains securely sealed inside the drive enclosure. The MG08 Series features a 18TB 9-disk model, while the MG07 Series features both 14 TB 9-disk and 12 TB 8-disk models.
Enterprise users need flexibility - the MG Series meets this need with a choice of 6 Gbit/s SATA and dual-port 12 Gbit/s SAS interface options as well as block size on demand (512e, 4Kn, 512n). Additionally, there are options for Toshiba hard drives with Self Encrypting technology or with Sanitize Instant Erase (SIE) technology, which means that in an instant all data is erased, without the need for overwriting the drive for hours.
Toshiba is renowned the world over for 50 years of leading innovation – and the power behind its range of hard drives is no exception. Designed for high capacity and excellent performance, you can be sure that Toshiba’s wealth of experience in hard drives is at work in your storage system. A 5-year extended warranty is also included with the Enterprise Capacity Hard Drive - MG Series for the ultimate peace of mind.
