The industrial range of CyberServes enable clients a maximum of 20 Slots to procure systems that support Â ISA, PCI, PCIX, PCIe or a combination of allÂ four expansion slots.

Available in single or dual processor, dual or quad cores and up to 32 Gb RAM the Broadberry Range of Industrial server will provide a suitable solution for all requirements.

The Industrial Range is available in numerous formats so if the specification that you require is not high offered on the web site please contact us and we will be able to quote accordingly.

Single Board Computer Options

BDS1.0 8779VG2AR

Support Intel Core 2 Duo and CoreTM 2 Quad processors and offers flexible 1333/1066/800Mhz FSB selection
Delivers up to 4GB maximum DDR3 1066/ 800 on two long DIMM sockets
Support Intel G41 integrated GMA X4500 graphic engine delivers optimized 3D graphics performance
Support dual display VGA and DVI-D interface, and SDVO connector for other types display by project
High speed dual Gigabit Ethernet based on PCI Express x1, high bandwidth I/O interface
Support one CF socket up to UDMA5 mode
Rich I/O connections such as FDD, two Gigabit Ethernet, serial ports, parallel port, USB 2.0, and SATA ports

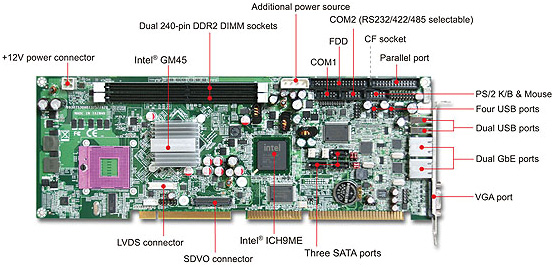

BDS1.0 8719VG2AR

Intel latest 45 nm Core 2 Duo or Celeron M processor based PICMG Single Board Computer with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, and Audio

ROBO-8719VG2A offers flexible FSB up to 1066MHz selection of Intel 45nm Mobile Core 2 Quad, Core 2 Duo or Celeron M processor that features high computing power with low heat
Integrated 5th generation graphic engine Mobile Intel GMA 4500MHD built with max. graphics core speeds up to 533MHz to improve graphics and 3D rendering performance
Support two on-board display output options, including VGA and 24-bit LVDS for flexible display choice. An optional DVI-D output card support via board to board SDVO connector by project
Support integrated Intel Trusted Platform Module (iTPM) for more secure plateforms
Support CF socket by SATA to IDE bridge for more storage application
High speed dual Gigabit Ethernet support
Various I/O interface includes three high-speed SATA 300 ports, six USB 2.0 ports, single Parallel port, two COM ports and single FDD port

3U or 4 U Chassis Backplanes

PICMG Passive Back Planes

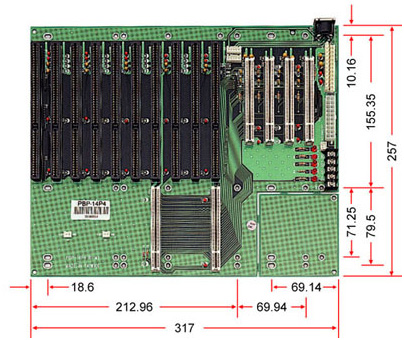

Â BDS 14i4PBP

Fit for 14-slot chassis ATX power connector support 9 ISA / 4 PCI usable Back Plane. 317(L) x 257(W) mm;12.48"(L) x 10.12"(W).

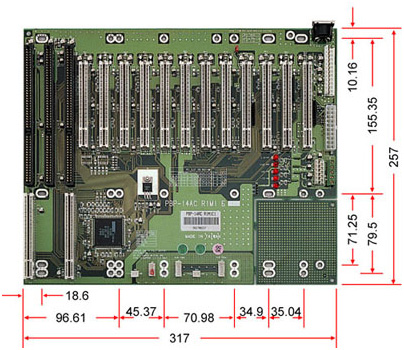

BDS 14P3PBP

14-slot (12xPCI) active PICMG backplane

Fit for any 14-slot chassis ATX power connector support Suitable for advanced CTI application. 317(L) x 257(W) mm;12.48"(L) x 10.12"(W)

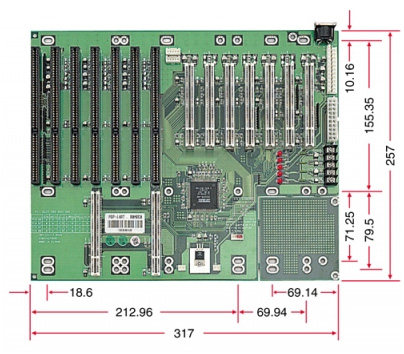

BDS 14P6I7P

14-slot (7xPCI) active PICMG backplane. Fit for any 14-slot chassis ATX power connector support Suitable for advanced CTI application. 317(L) x 257(W) mm;12.48"(L) x 10.12"(W).

2U Backplane

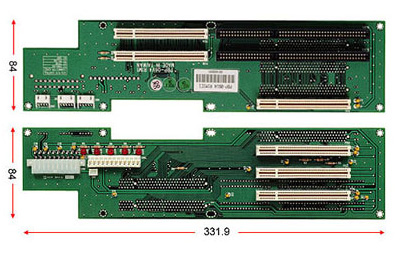

BDS 1.0 06V4

Vertical 6-slot (4xPCI) PICMG backplane

PICMG 1.3

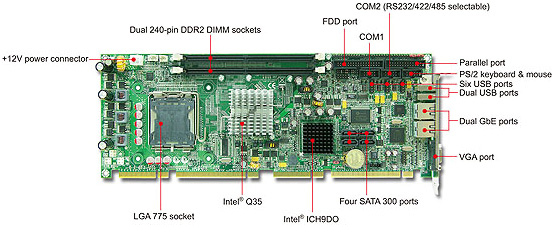

BDS 1.3 8913VG2AR

Intel Core 2 Quad processor based Intel Core 2 Quad processor based PICMG 1.3 SHB with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB SHB with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB

Support Intel Core 2 Quad processors up to FSB 1333MHZ
Low profile processor improves stability and reliability of whole system
Support eSATA that can communicate with multiple drives via port multiplier
Lockable cable-latched notches of SATA connector secure connection in vibration condition
Embedded Intel Active Management Technology (AMT) remotely discovers, heals and protects networked computing assets using third-party management and security applications
System noise and heat are reduced through more intelligent fan speed control algorithms by integrated Intel Quiet System Technology
Flexiblie design of four external PCI Express x1 could aggregate as one PCI Express x4 for storage device thru backplane

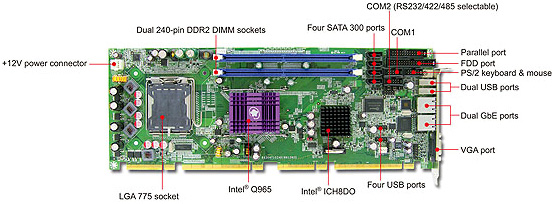

BDS 1.3 8912VG2AR

Intel Core 2 Duo processor based PICMG 1.3 SHB with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB

Support 45nm Intel Core 2 Duo processor that generates a maximum 65W TDP. Lower TDP than socket 775 Pentium 4 processor makes the vertical mount slot board more reliable
Low profile processor improves stability and reliability of whole system
More features, such as EM64T, EIST, XD & VT,can be easily applied to system by changing processor
Integrated Intel GMA 3000 graphics engine built with high grade display capability
Lockable cable-latched notches of SATA connector secure connection in vibration condition
Embedded Intel Active Management Technology (AMT) remotely discovers, heals and protects networked computing assets using third-party management and security applications
System noise and heat are reduced through more intelligent fan speed control algorithms by integrated Intelï¿½ Quiet System Technology
Flexiblie design of four external PCI Express x1 could aggregate as one PCI Express x4 for storage device thru backplane

PICMG 1.3 Passive Back Planes

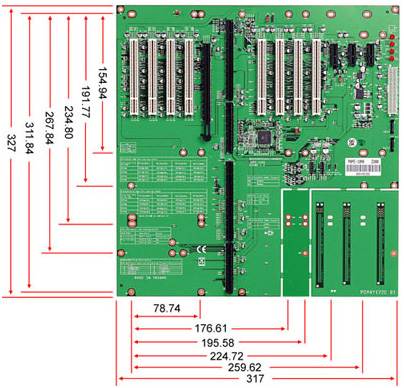

BDS 1.3 13A8

13-slot [PCI (8), PCI-E x16 (1),PCI-E x1 (3)]PICMG 1.3 Backplane

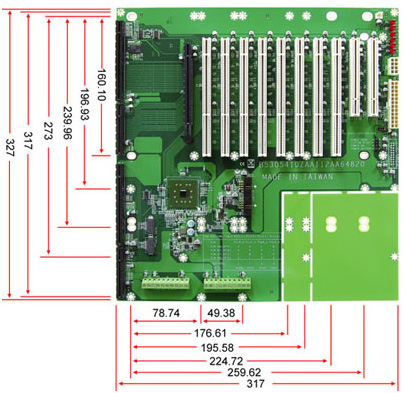

BDS 1.3 12AA64

12-slot [PCI-X (8), PCI-E x16 (1), PCI (2)

2U BACKPLANE

BDS 1.3 -06V464

Vertical 6-slot (4xPCI) 64-bit PICMG 2U chassis BACKPLANE and 64-bit PICMG FS Single Board Computer

Dual Xeon CyberServe Industrial Server

PICMG 1.3 Server Grade

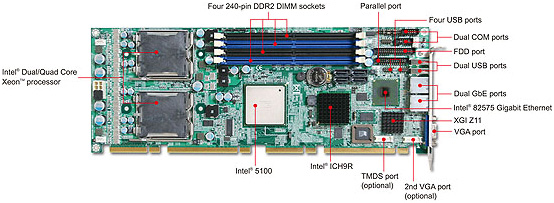

BDS 1.3 8921VG2R

Dual/Quad Core Xeon processor based PICMG 1.3 SHB with DDR2 ECC SDRAM, VGA & Dual Gigabit Ethernet

ROBO-8921 offers flexible 1333/1066 MHz selection of Intel Dual/Quad Core Xeon processors with LGA771 package
Flexible design of dual PCI Express x8 could be aggregated as one PCI Express x16 for Graphic card
Rich & powerful I/O expansion covers dual PCI Express x8, one PCI Express x4 and four PCI devices
Up to 32GB, ECC registered memory assured the computer reliability and benefited the data swapping process
Relative high performance graphic engine ,XGI Z11 provides solid 2D for server grade market
Dual PCI Express x4 based Gigabit Ethernet supports IPv4, IPv6 offloading, VLAN, Wake-On-LAN functions
